Quick Details

  • Place of Origin: Guangxi, China (Mainland)
  • Brand Name: Yuchai
  • Model Number: YC6K360GF
  • Output Type: AC Three Phase
  • Speed: 1500rmp
  • Frequency: 50Hz
  • Rated Power: 360KW
  • Rated Voltage: 400V
  • Rated Current: 648A
  • Color: Red & Black
  • Weight: 2800KG
  • Type: Water Cooled, 4-stroke
  • Usage: Factory & School & Hospital & Army
  • Overall Dimension: 3130*1260*1860 mm
  • Cylinder: 6-cylinder, in-line
  • Intake way: Turbo charging
  • Cooling system: Inner fan and water -cooling rediator
  • Engine model: YC6K540L-D30
  • Protect grade: IP21

Packaging & Delivery

Packaging Details Packing method : wooden case
Delivery Time 15 days

YC6K 360KW Diesel Genset

Features

1.Generator set adopts Y&C Engine high-quality engine YC6K540L-D30 as power, selects name brand alternator made by NanChang KangFu Generator Co., Ltd.

2.It has advantages of compact structure, high degree of automation, smooth and reliable operation, low fuel consumption, low emission, low noise, etc.

3. The YC6K engine is designed and developed by Mercedes-Benz's latest heavy machinery team AVL company, integrated world's latest engine technology.

4.The MIN. Fuel consumption is 189g/kwh, mainly parts were made from high strength Vermicular cast iron, this make 15% weight lighter than traditional engine.Emission standard reach national standard third class,higher than the national non-roadway standard.

5.The engine was finished 50000 hours reliability testing, more than 90% mass production engine life over 1,250,000 hours. Within 2,500 hours don't need to adjust valve clearance.



(KW) Rated Power360(KW)Standby Power396
(V) Rated Voltage400/230(A) RatedCurrent648
(r/min) Rated Speed1500Phase Number and ConnectionThree-phase Four lines
(Hz)  Rated Frequency50 Rated Power Factor0.8(lag)
    Starting WayElectric StartVoltage Regulation Model     Automatic
   Cooling WaySealed and Water Cooling SystemExcitationHamonic Brushless
Steady Voltage Variation                 ±1(%)Transcient Voltage Regulation+20~-15
(S)Voltage Stabilization Time
≤3(%)Voltage Changing Ratio≤ ±0.5
(%)Steady Frequency Timing Ratio±5(%)Instant Voltage Timing ratio+10~-7
(S)Frequency Stabilization Time≤7(%)                 Frequency Changing Ratio≤± 0.5
Diesel Engine ModelYC6K540L-D30Generator ModelKF-W4(.D)-360
Jiangxi Kangfu (Sanbo)

(Output power)
Diesel Engine Power
402KW/1500RPM Generator Power360KW
(ISO3744)Bb(A)
Noise
≤102(L/h)Fuel Consumption at full Load   91
Controlling Panel ModelGuilin Guangming GMTI-75BOI
(KG)Net Weight2800
(mm) Overall Dimension3130*1260*1860







We join all kinds of fairs every year!

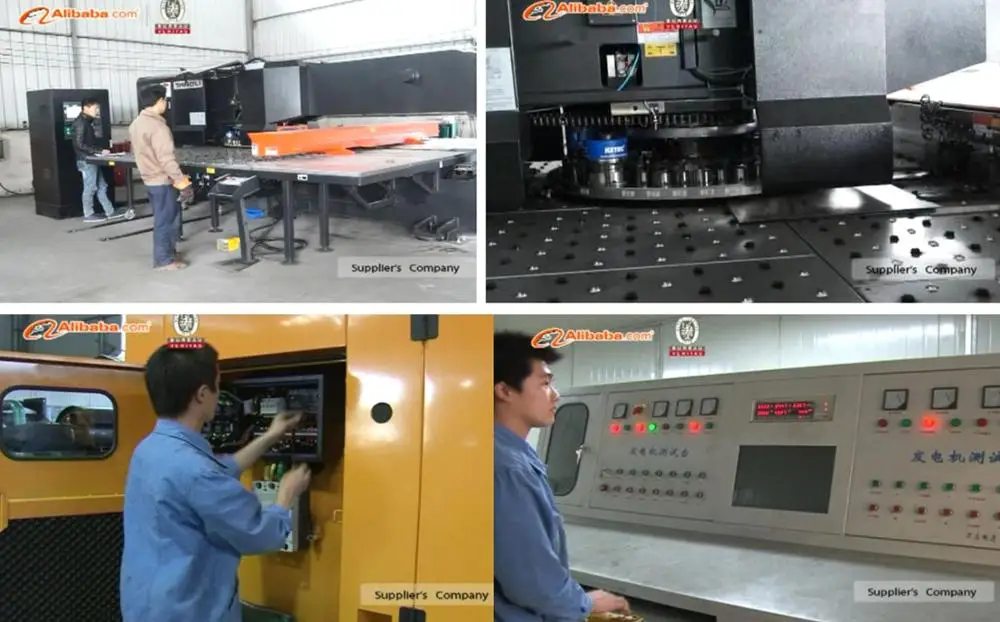

 Production Line

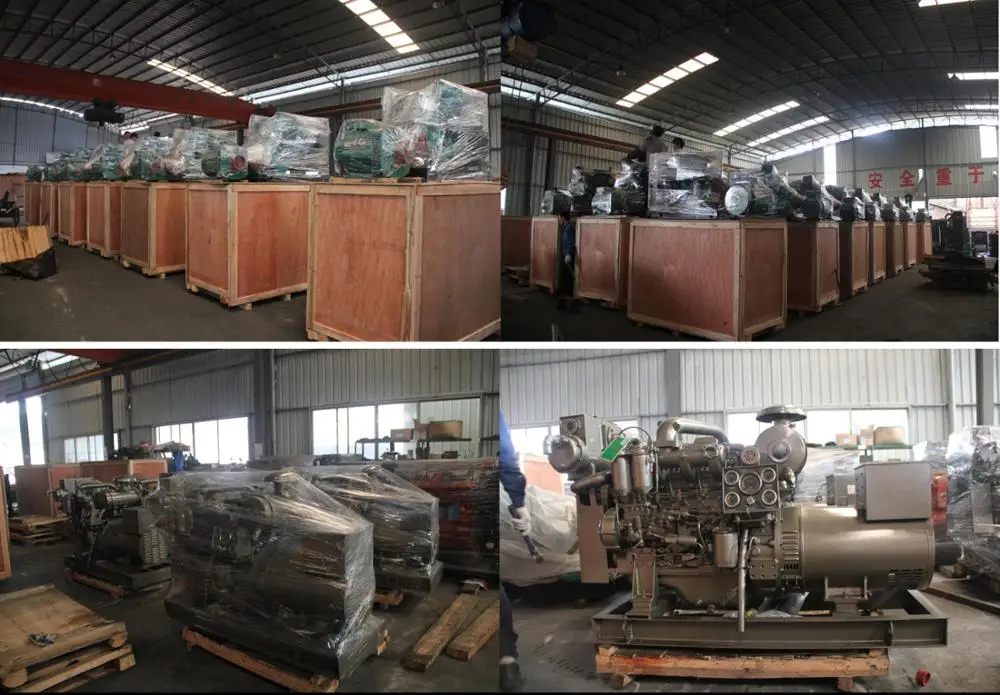

Wooden and Plastic Packing

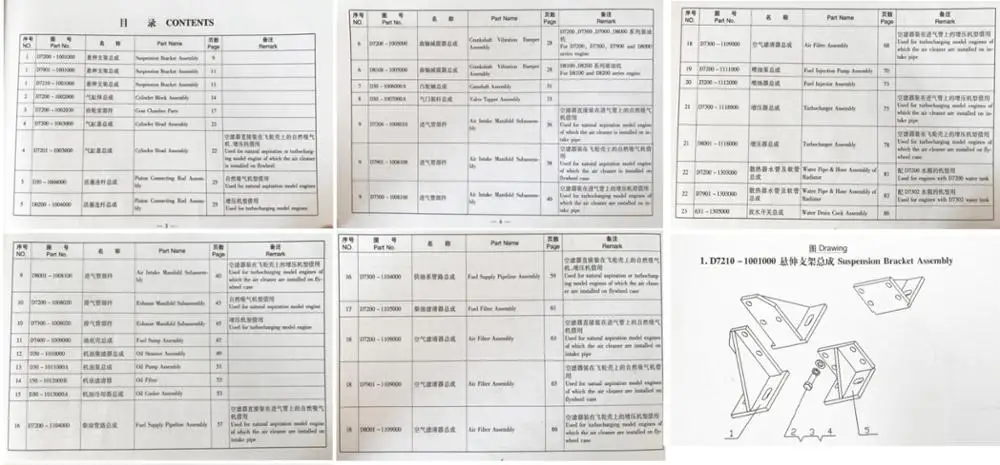

Every Cargo Contains a Catalogue of Parts

After Sales




Global Engineers
